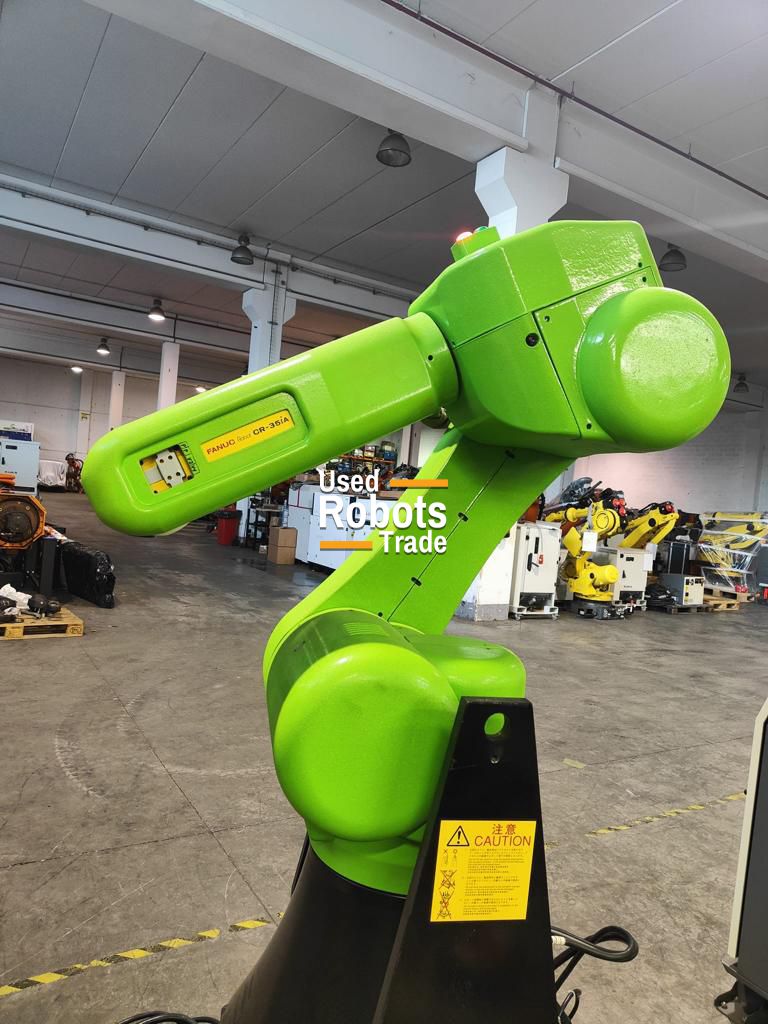

Collaborative Robot FANUC CR-35iA

Roboterdetails

Collaborative robot CR-35iA is recognised by its load capacity of 35 kg, which makes it ideal for handling heavy items in any position, reach of 1813 mm, and a system of integrated sensors that allows the robot to stop more robustly and safely in the process of easy production programming; it is certified in safety.

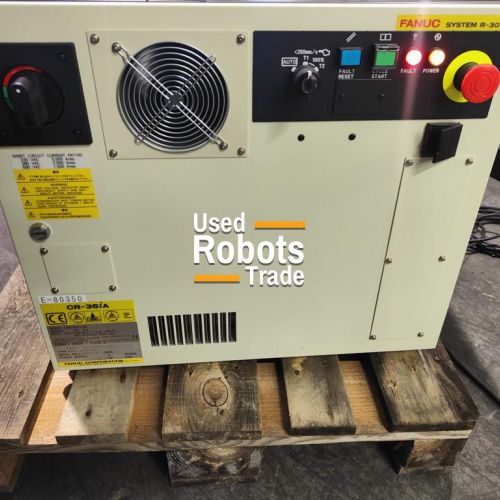

The R30iA controller allows quick amplifier change, enhanced boot time, easy to connection with different I/O.

Roboteranwendungen


Main Specifications

Maximum load of the robot: 35 kg
Number of axles: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.04mm (based on ISO9283)
Controller: R30iB

Movement range (°)

Axis 1: 370 °
Axis 2: 165 °
Axis 3: 258 °
Axis 4: 400 °
Axis 5: 220 °
Axis 6: 900 °

Maximum speed (° / s)

max. Cartesian speed 500 mm / sec (750 mm / sec when monitoring safety)
